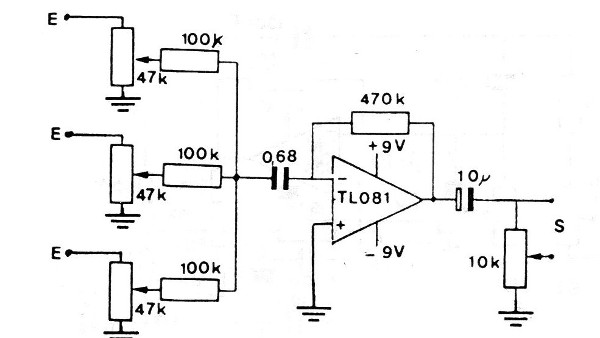

This circuit with 5 times gain was found in European documentation from the 1980s. The input and output cables should be shielded. The operational amplifier supports equivalent and can be used the dual version for a stereo configuration. The power supply must be symmetrical from 6 to 12 V.
