Turns On and Off Triac (CB1308E )

Details
Written by: Newton C. Braga

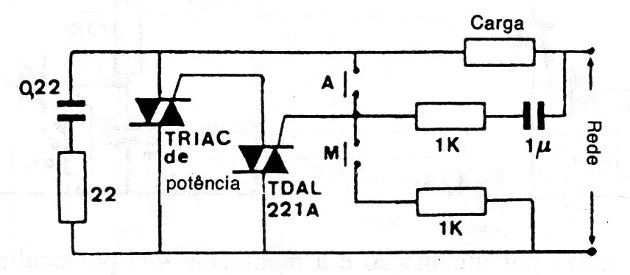

     This circuit enables the bilateral command of triacs with the use of low current switches. The triac must be according to the load, being mounted on a heatsink. The circuit is documentation from the 1980s.
