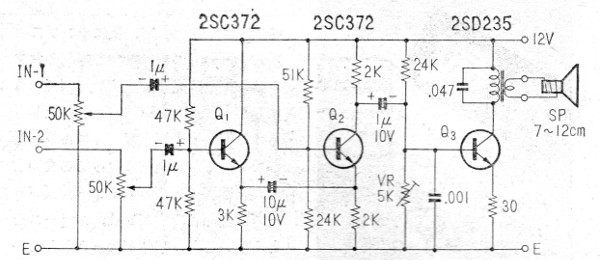

This small power amplifier makes use of an output transformer given its design time. In fact, the circuit comes from Japanese documentation of 1973 and should be powered with a voltage of 12 V. The transistors are of the time and can be tested modern equivalents.
