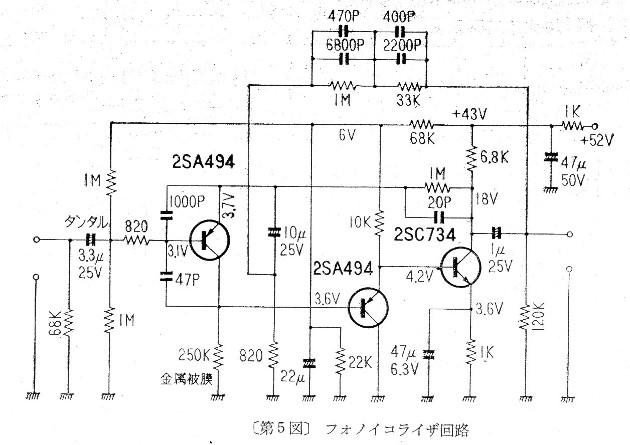

This circuit is from a Japanese magazine of 1973. The circuit is designed to withdraw the power from the amplifier itself with which it should operate. The transistors used are of the time, and modern equivalents can be tried in a current assembly.
