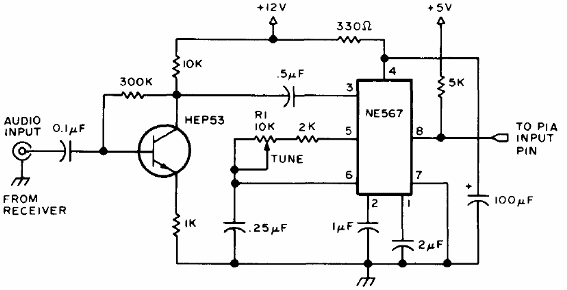

This circuit is found in a 1975s documentation for radio amateurs. It was developed to recognize a 1 kHz call tone on a radio system but could be used for other purposes. The level of the input signal should be 200 mV and the power must be supplied with the voltages indicated for a TTL compatible output.
