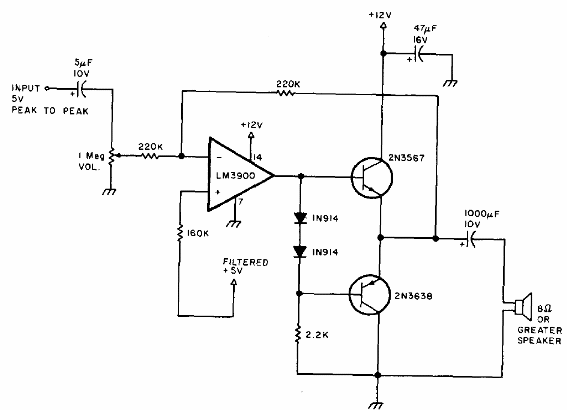

This circuit is intended for signal amplification of electronic musical instruments. We found in a 1977 publication. The output transistors may be the BD135 and BD136 equipped with heat radiators. The power supply does not need to be symmetrical.
Synthesizer Amplifier (CB1491S)
- Details
- Written by: Newton C. Braga
