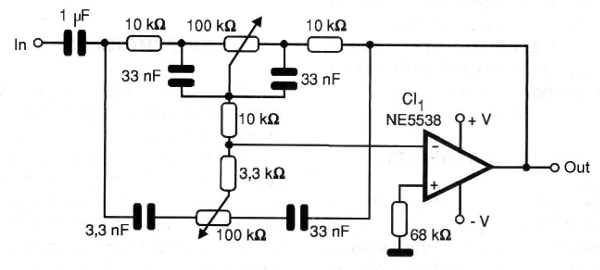

This basic tone control circuit employs a Philips NE5538 operational amplifier, but can be adapted to work with other operational amplifiers. The power supply must be symmetrical, and the bass and treble gain can reach 10 dB. The input impedance is high.
