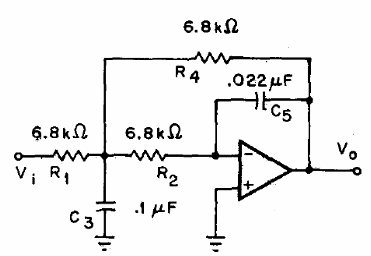

We found this circuit in a documentation on active filters from 1977. The gain of this circuit is unitary. The power supply must be symmetrical and the components can be changed for operation at other frequencies. Other operations may be used.
