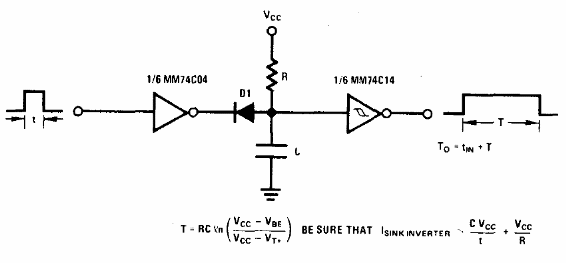

This circuit is from the National Semiconductor CMOS manual of 1977. What this circuit does is to extend a digital pulse, extending its duration by a time that is calculated by the formula next to the diagram. The circuit uses CMOS technology.
This circuit is from the National Semiconductor CMOS manual of 1977. What this circuit does is to extend a digital pulse, extending its duration by a time that is calculated by the formula next to the diagram. The circuit uses CMOS technology.
