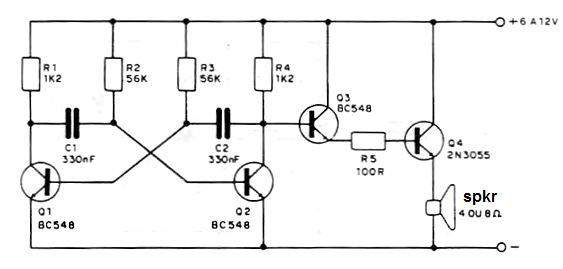

This simple experimental circuit using only transistor produces a tone given by C1 and C2. Tone is amplified and applied to a loudspeaker. Q4 must be mounted on a heatsink.
One Tone Generator
One Tone Generator (CB447)
- Details
- Written by: Newton C. Braga
