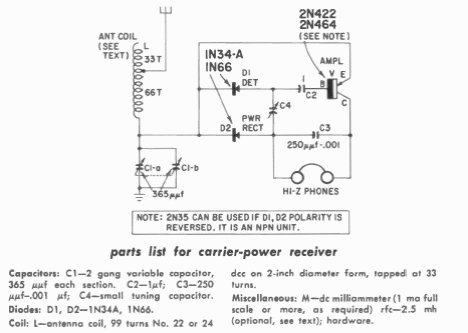

Monitor receiver (CIR21944E)

This receiver was found in a documentation by Gernsback from 1960. The circuit uses high impedance headphones and germanium transistors of the time.
