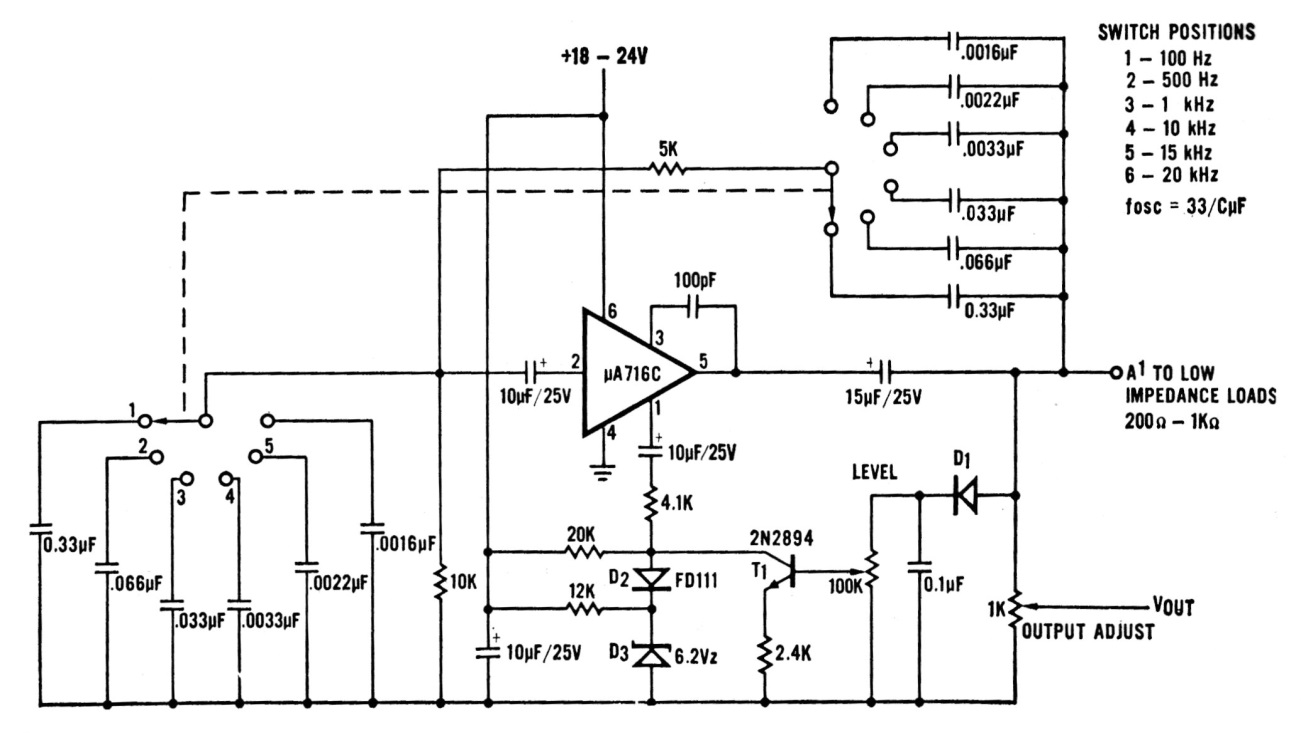

This sophisticated sinusoidal audio signal generator uses a Wien bridge configuration with an operational amplifier. The source need not be symmetrical and equivalent amplifiers can be tried. Other critical components also support equivalents. The frequency range goes from 100 Hz to 20 kHz. The circuit was found in an old American documentation.


| Clique na imagem para ampliar |





N° of component
