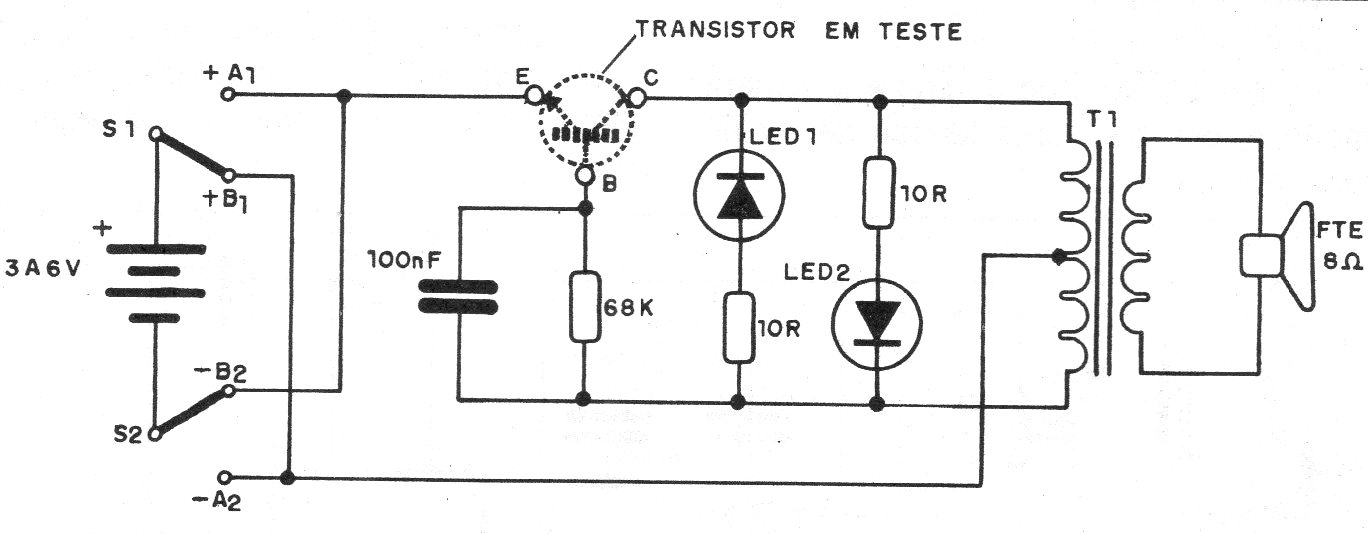

This ttransistor test was found in a 1987 documentation. It is a simple oscillator that allows to prove transistors of general use so much NPN as PNP. The circuit is battery powered and the transformer is output found on old transistor radios.


| Clique na imagem para ampliar |





N° of component
