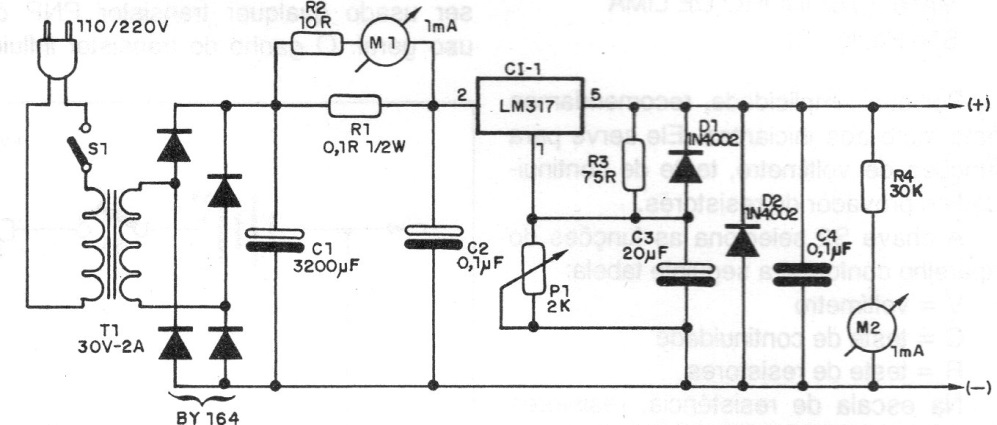

This conventional power supply circuit with the LM317 was found in a 1987 publication and its current is determined by the IC which is actually a little higher than 1 A. The regulator integrated circuit must be provided with a good heat sink and source includes voltage and current meters.
