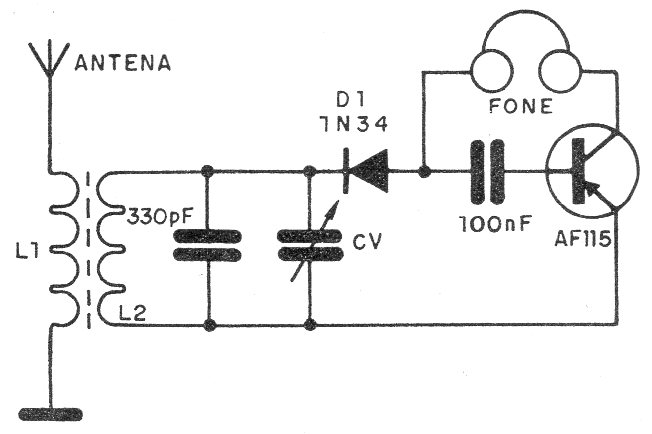

The signal itself captured by the (long) antenna serves to feed this simple experimental circuit. The circuit will work best with germanium transistors and the handset must be high impedance. L2 consists of 80 turns of wire 28 on a ferrite rod and L1 has 20 turns on L1.
