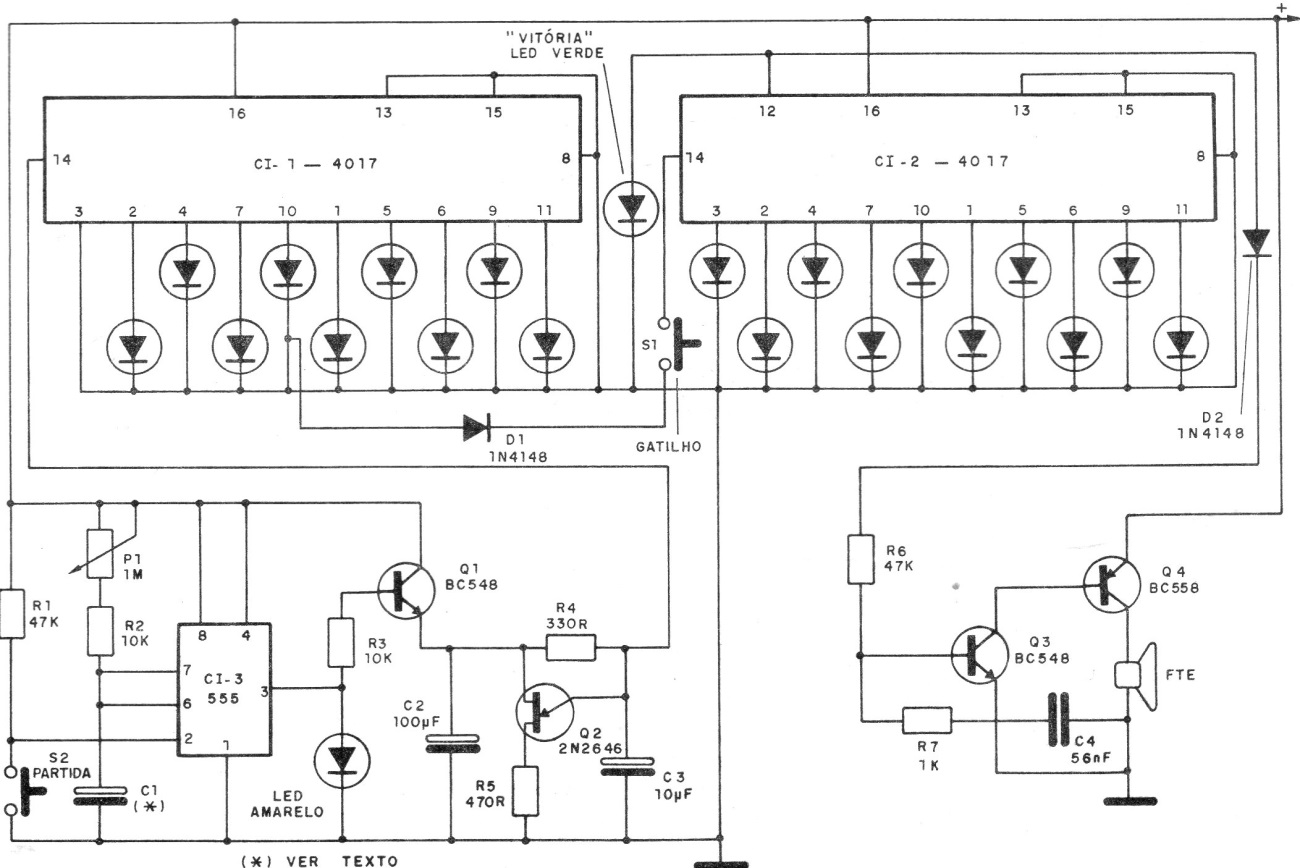

This shoot-to-target game uses well-known CMOS circuits and the player hits the LED by squeezing the trigger as it passes through the center of the target (victory). The circuit is powered by batteries (6V) or battery (9V) and has a sound effects oscillator. Target speed is set to P1.
| Clique na imagem para ampliar |
