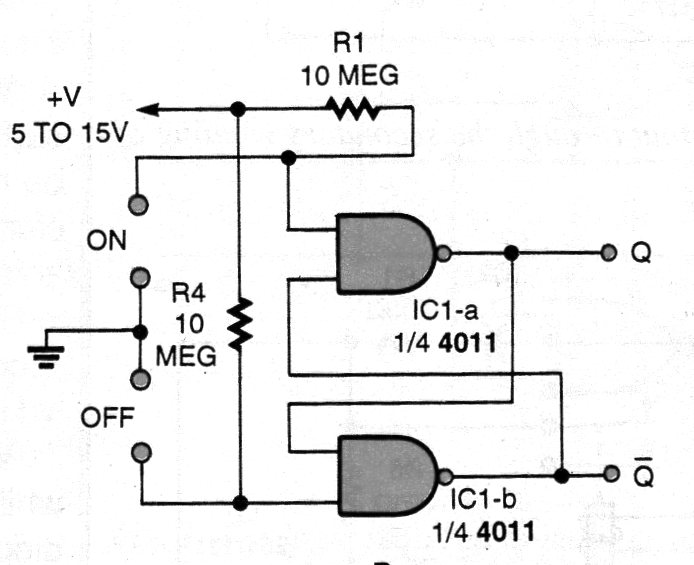

Two of the four gates of a 4011 is used in this biestable touch circuit. Do not use a power source without a transformer. The resistors determine the sensitivity of the circuit. The circuit can be used as an input shield for microcontrollers.


| Clique na imagem para ampliar |
