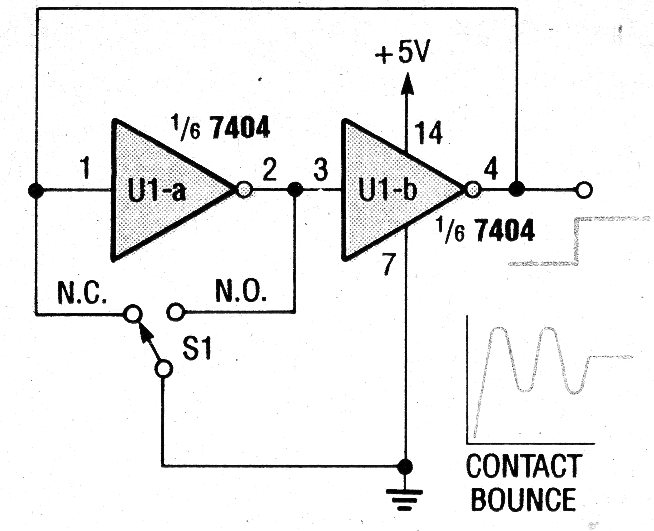

This traditional TTL anti-clock setting was found in a 1993 American documentation. The circuit operates at 5 V and is CMOS compatible at this voltage. The circuit can be used as a shield for microcontrollers.
| Clique na imagem para ampliar |
This traditional TTL anti-clock setting was found in a 1993 American documentation. The circuit operates at 5 V and is CMOS compatible at this voltage. The circuit can be used as a shield for microcontrollers.
