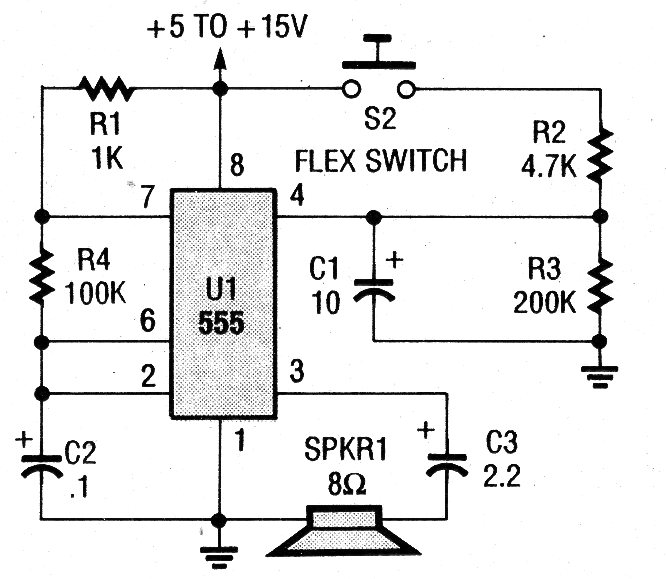

This circuit simulates a low-level siren and can be supplied with voltages from 5 to 15 V. Capacitor C1 determines the effect. We found the circuit in an American publication of the 1990s. The circuit can be triggered by pin 4 operating as a shield.
| Clique na imagem para ampliar |
