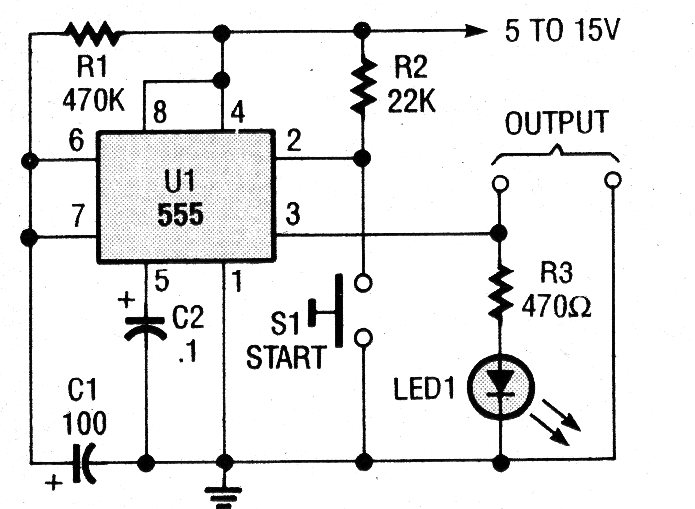

This configuration triggers an external circuit or simply an LED for time given by R1 and C1 (T = 1.1 x R1 x C1) see in our formulas section). The output can be used to trigger a step with relay. The start can also be made by a sensor.
