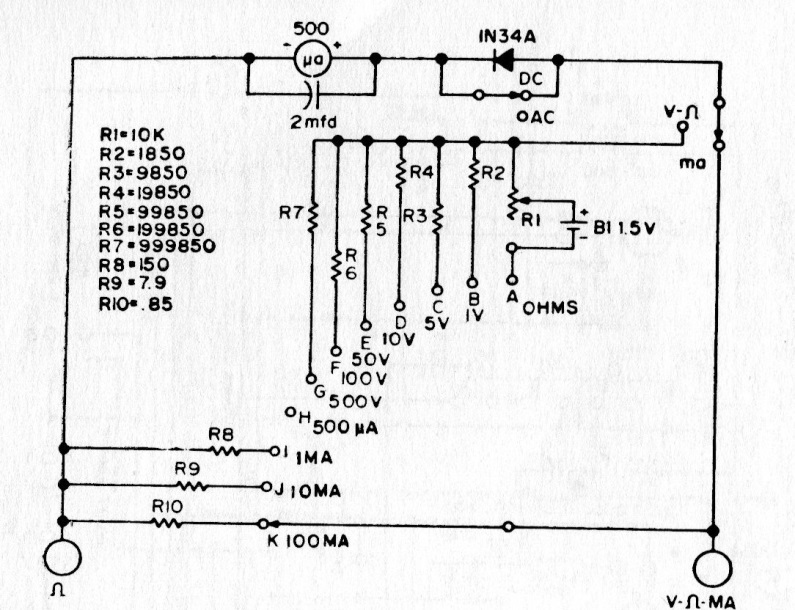

The accuracy of this multimeter depends on the accuracy of the used resistors. The circuit uses a microcammeter from 0 to 500 uA and has voltage, current and resistance scales. The circuit is from an old American publication.
| Clique na imagem para ampliar |
