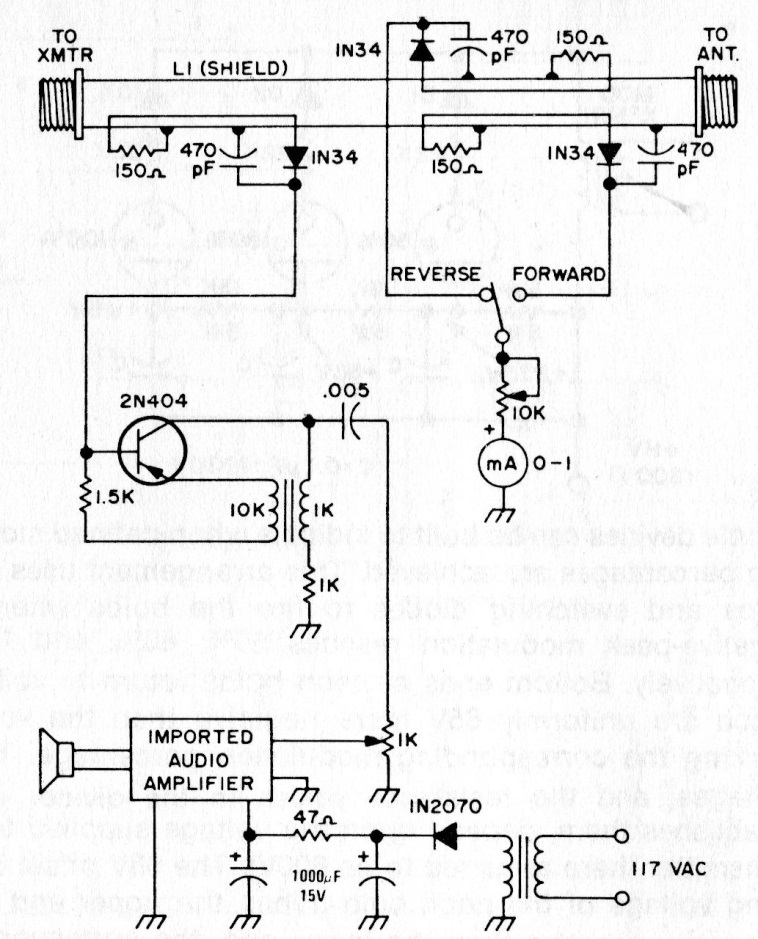

We found this circuit in an old American documentation for hams. The circuit serves as a telegraph monitor providing an audible signal on the CW transmission and also measures the reflected power (standing waves) of a transmitter.
