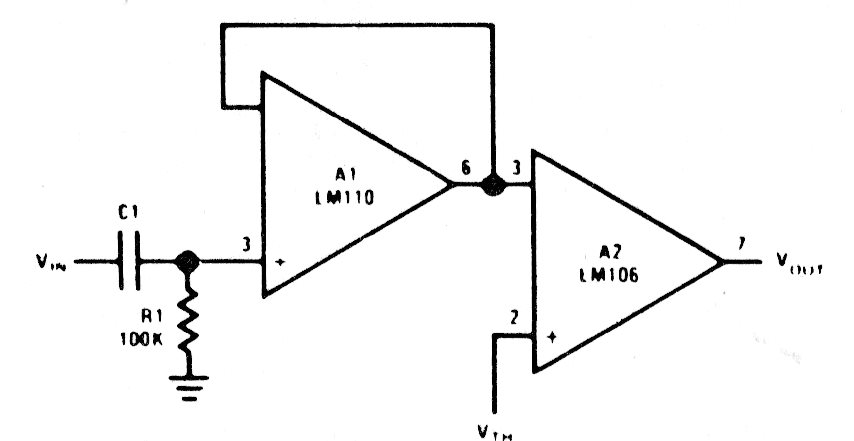

This circuit is from an American documentation of the 1980s. The circuit can be implemented with more modern equivalent components. The power supply must be symmetrical according to the used components.
| Clique na imagem para ampliar |
This circuit is from an American documentation of the 1980s. The circuit can be implemented with more modern equivalent components. The power supply must be symmetrical according to the used components.
