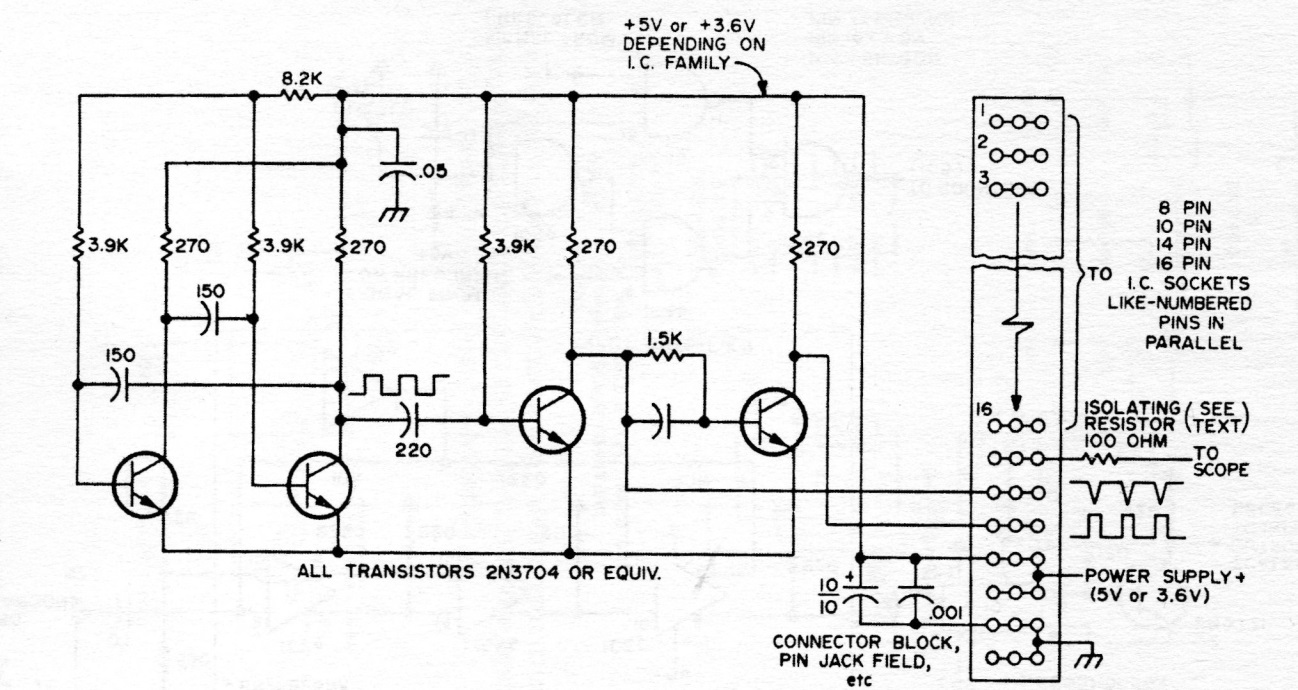

We found this circuit in an American documentation of the 80's, being indicated for the test of circuits of general use TTL. The circuit can be adapted to test digital circuits of other logic. The circuit generates a test signal.
