Resistance meter in Resonance (CB3906E)

Details
Written by: Newton C. Braga

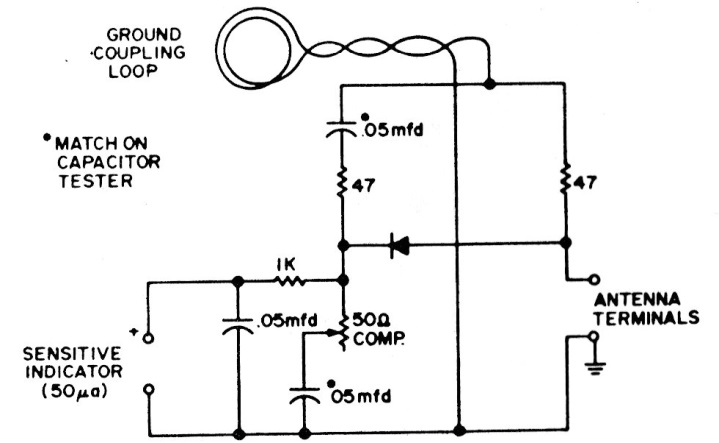

    The purpose of this circuit is to measure the resistance of an antenna at the resonant frequency. The circuit is from an old American documentation for hams.
