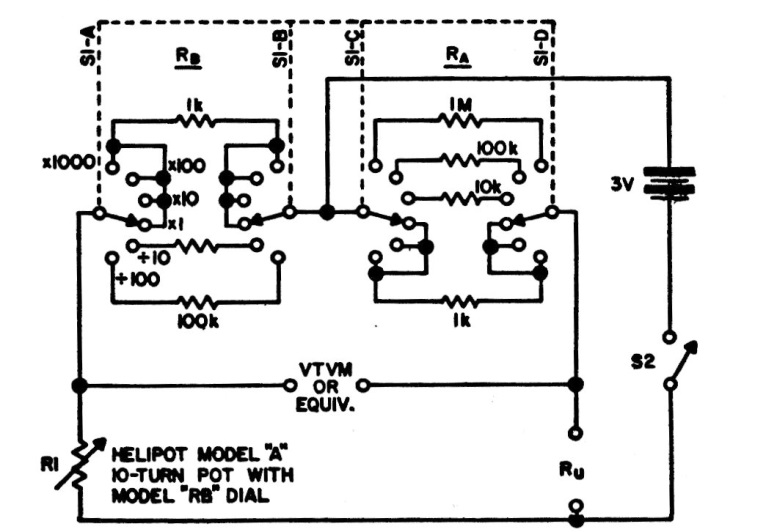

This is a bridge for the measurement of low value resistances and high values too. The circuit uses a common multimeter or microammeter as a null detector. In the case of the microammeter, a series resistance shall be calculated.
