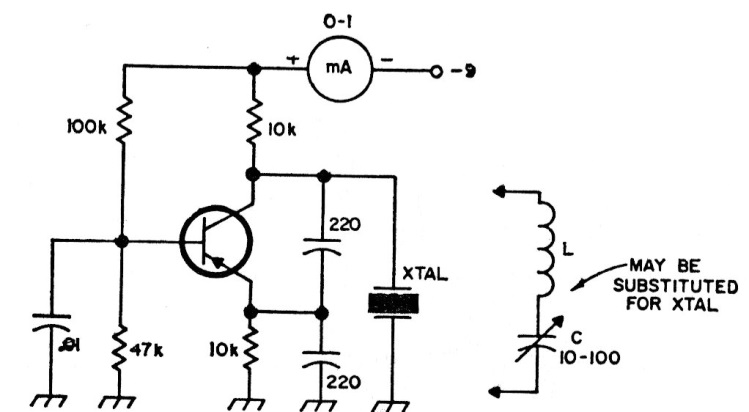

This circuit checks the oscillation capacity of a transistor. The circuit can be used with fixed frequency (crystal) or with an adjustment circuit. We found this configuration in an old instrumentation documentation.
