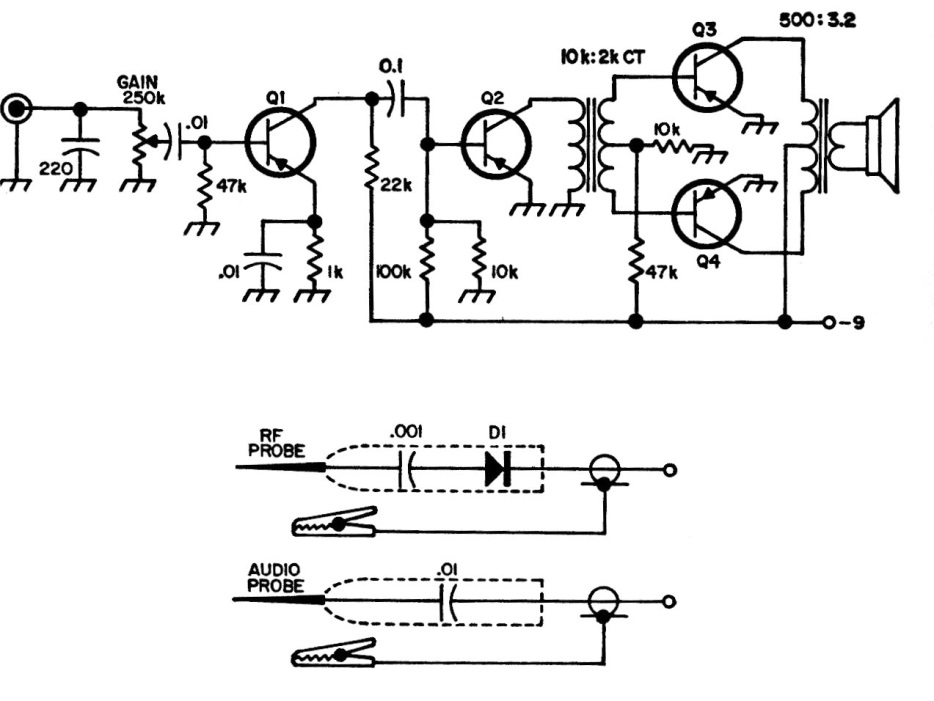

This signal follower is from a 1970's documentation. So it uses the traditional configuration at the time of an amplifier with class B steps and push pull output with small transformers, as it was used in transistor radios. Below the diagram we have the audio and RF tips.
