10W Wattmeter (CB3941E)

Details
Written by: Newton C. Braga

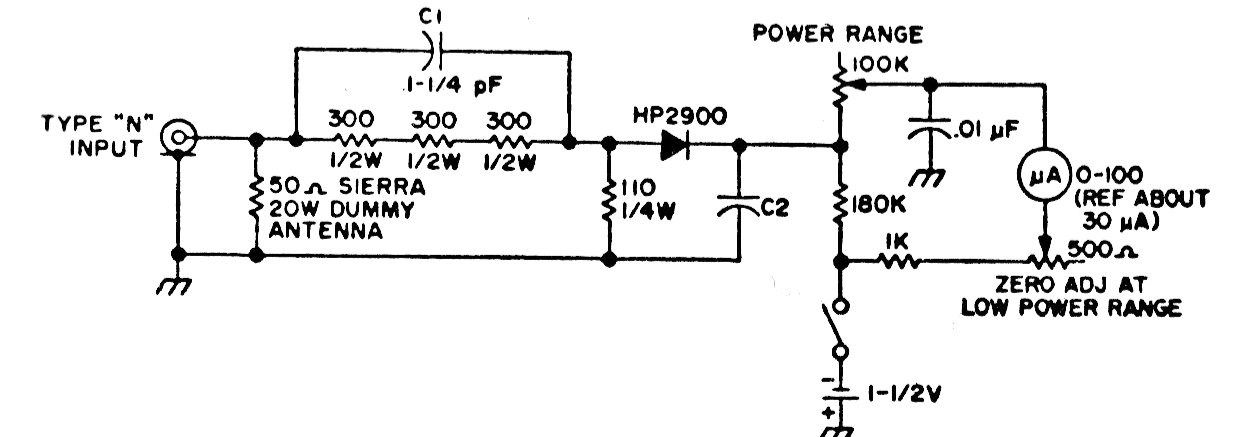

     This RF circuit measures transmission power from 0.25 W to 10 W. The maximum frequency depends on the diode and the gauge is an analog instrument. A multimeter can be used instead.




| Clique na imagem para ampliar |
