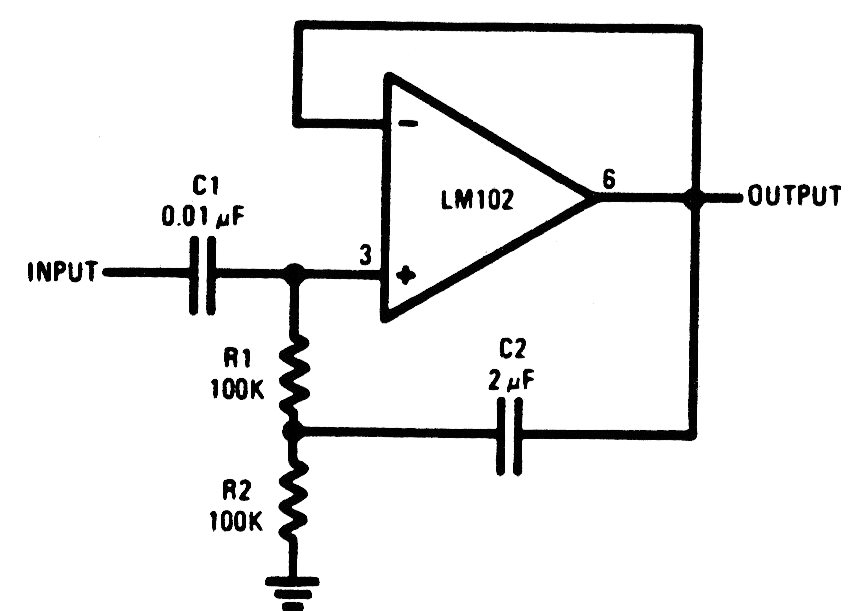

This circuit consists of an emitter follower, presenting unit voltage gain implemented with an operational from the 1970s. The circuit can be implemented with modern operating systems. The power supply must be symmetrical.




| Clique na imagem para ampliar |
