Rectangular Signal Generator (CB3954E)

Details
Written by: Newton C. Braga

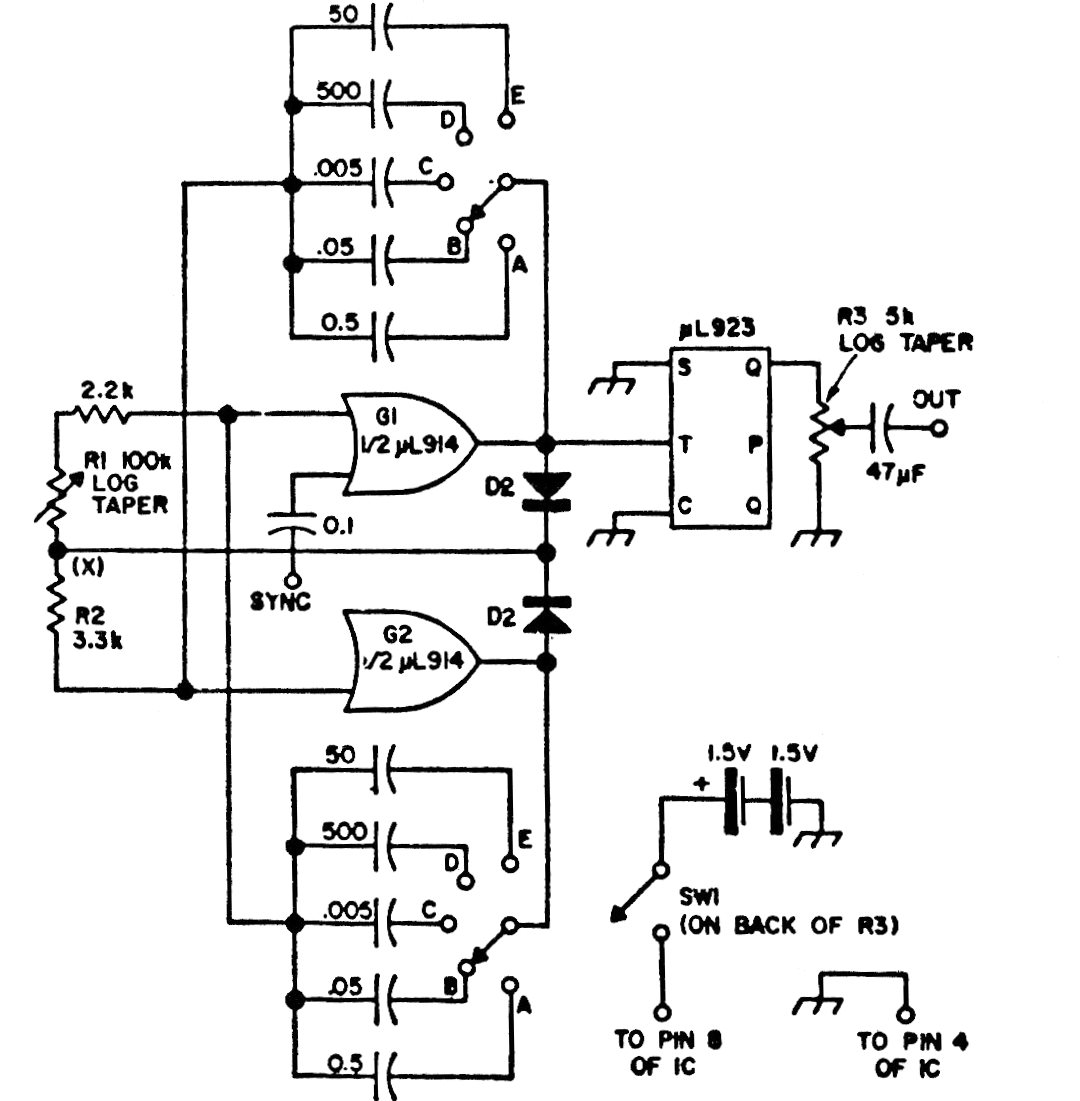

    In the figure we have a good rectangular signals generator with several frequency bands. The circuit is based on old logic but can be implemented with modern equivalents.




| Clique na imagem para ampliar |
