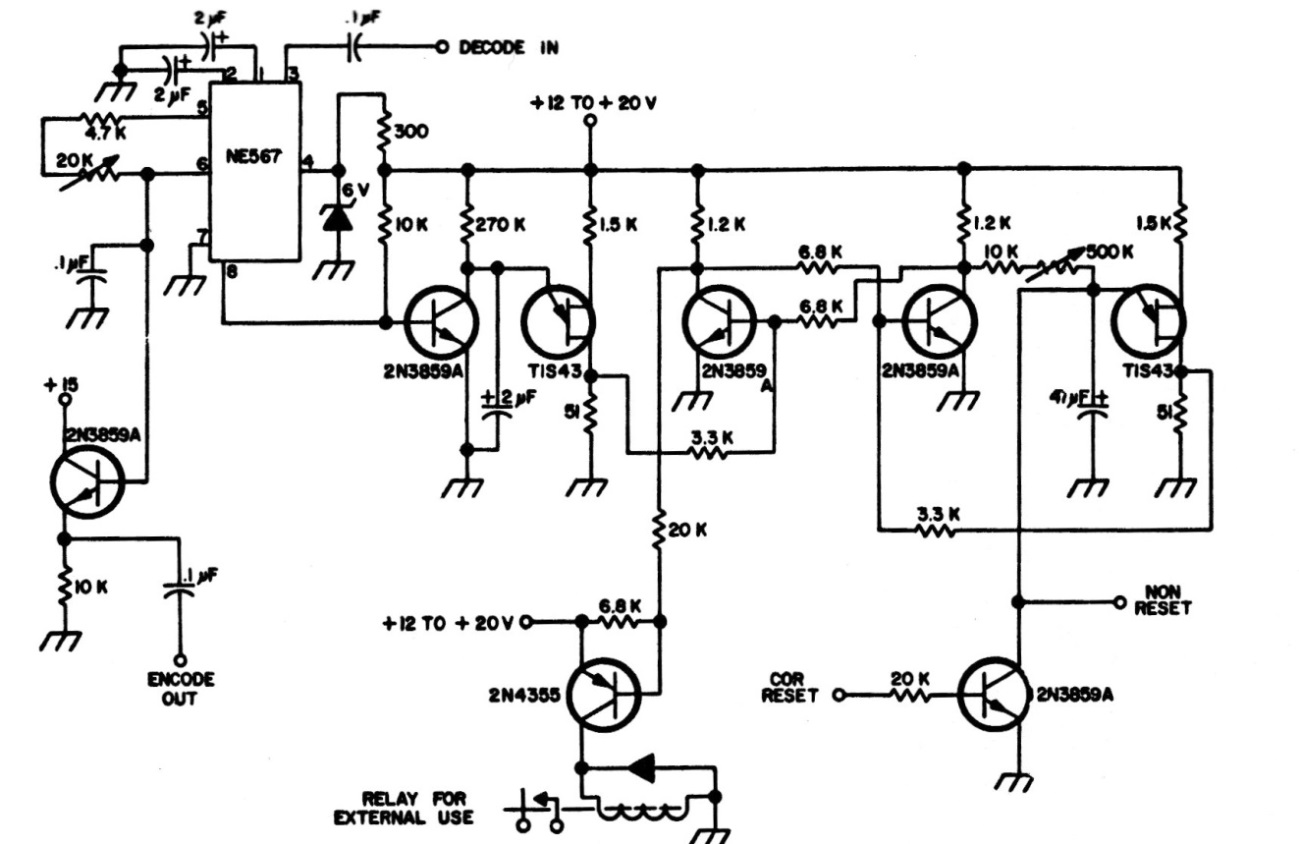

This rather sophisticated circuit does not recognize false tones, such as harmonics, and can be used in remote control systems. The transistors allow equivalents and the supply voltage must be strictly within the indicated range. The circuit is from an old American documentation.
| Clique na imagem para ampliar |
