Capacitive Loads Operational (CB3991E)

Details
Written by: Newton C. Braga

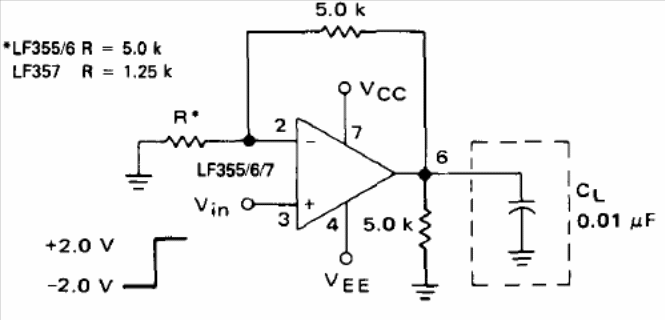

    This circuit is from the Motorola LinearDatabook of 1990. It shows how it uses the LF355, 356 and 357 operational capacitive loads. The power supply must be dual.
