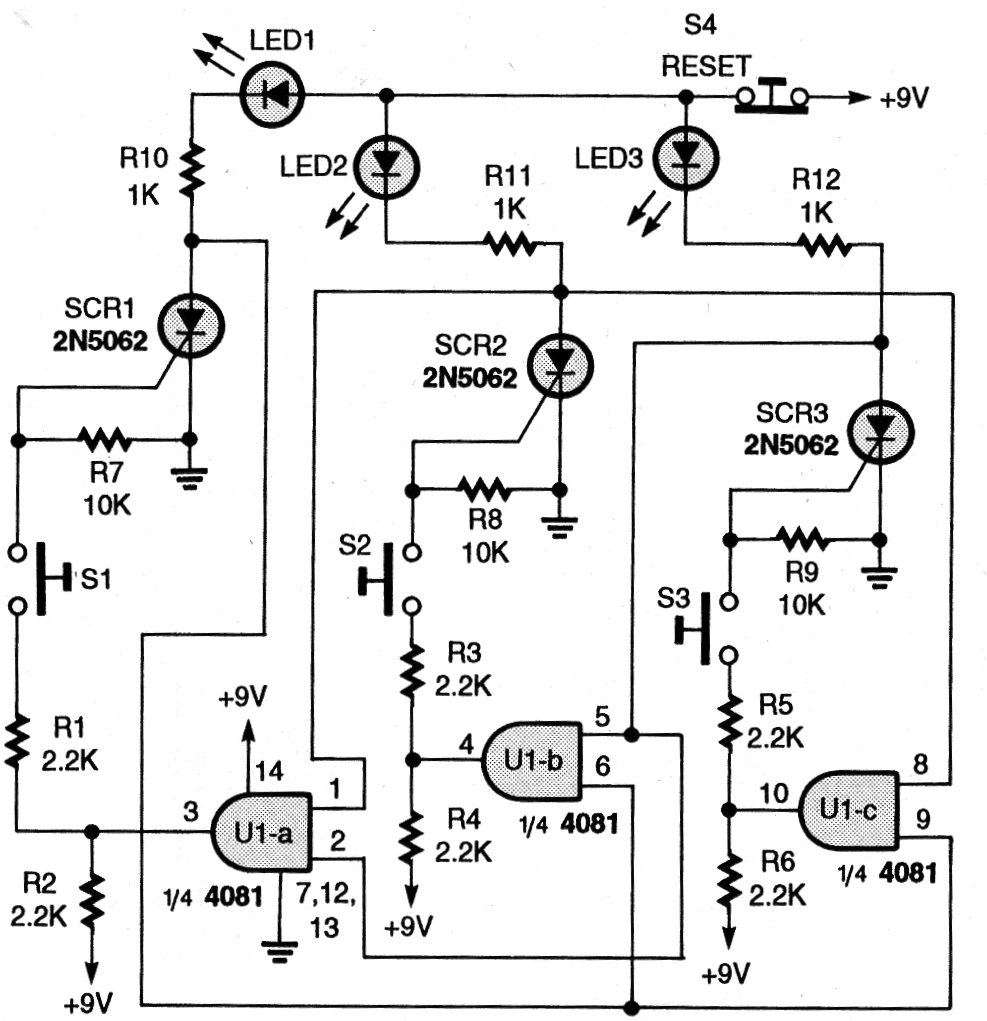

The SCR sector of this circuit can be powered by high voltage AC and instead of the LEDs we can use 110 V or 220 V higher brightness indicator lamps. The circuit can use SCRs of the TIC series and the reset is done by pressing S4 for a moment. The circuit is from a 1998 Poptronics.
