300 mW output stage (CB4280E)

Details
Written by: Newton C. Braga

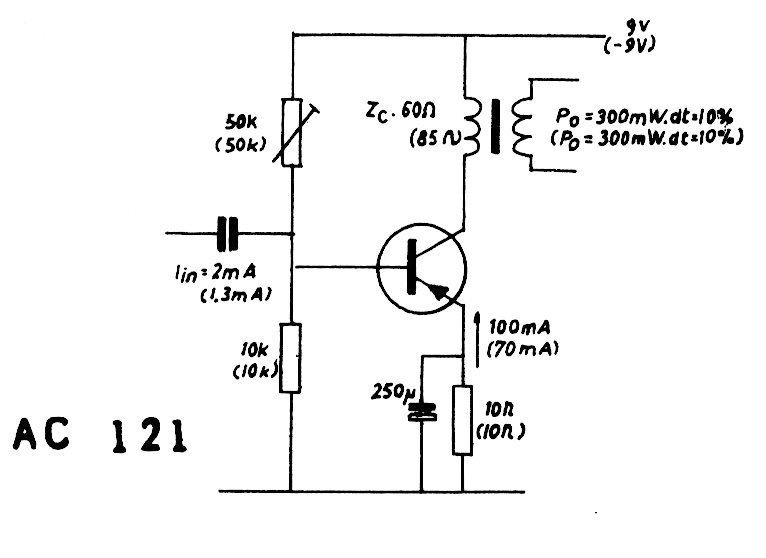

      This 80's circuit uses a germanium transistor like the AC121. The circuit has an output transformer of the type found on many transistor radios of the time.




| Clique na imagem para ampliar |
