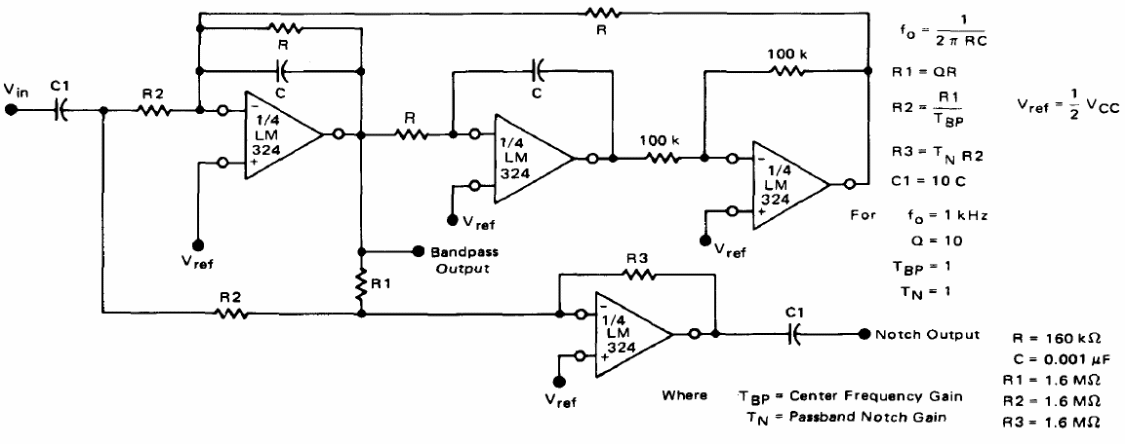

We found this filter in the 1990 Motorola Linear Databook, but it can be implemented with other operational ones. The formulas next to the diagram allow to determine the characteristics of the circuit for other frequencies, other than 1 kHz, which is given as an example.
