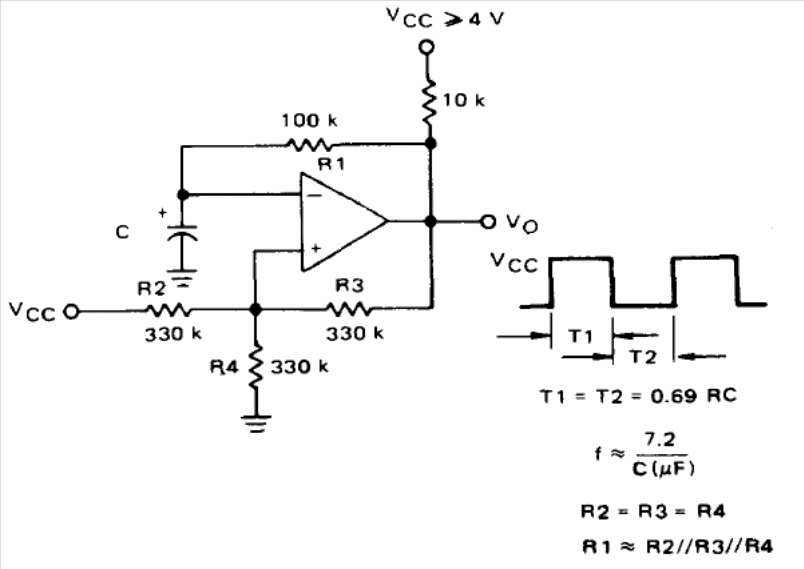

This traditional configuration that any Series 139 comparator can use is found in the 1990 Motorola Databook. The circuit does not need a symmetric power source and the components can be calculated from the formulas next to the diagram.
