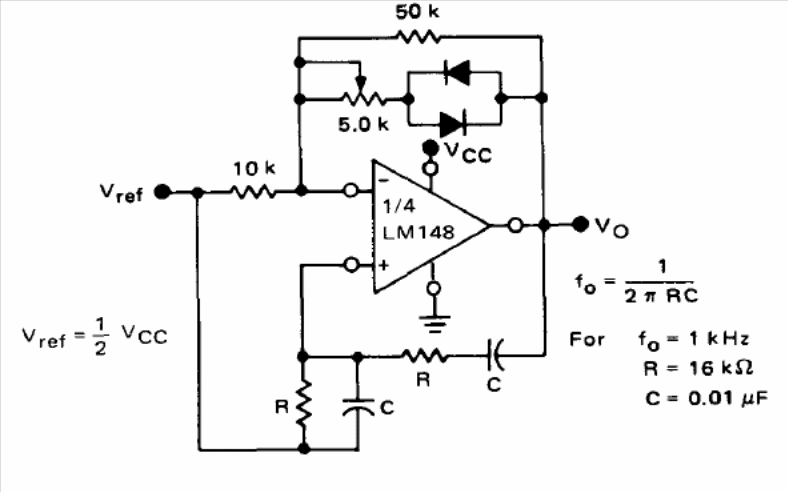

The circuit is from the 1990 Motorola Linear Databook, but can be implemented with other operating systems. The diodes are commonly used and the output signal is sinusoidal. The components for the desired frequencies can be calculated by the formula next to the diagram.
