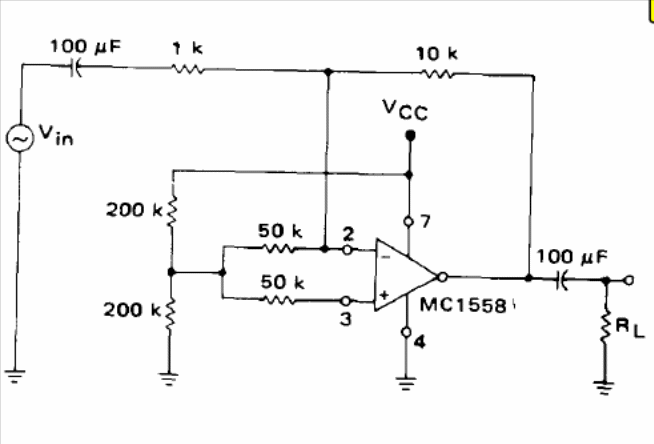

The circuit is from the 1990 Motorola Linear Databook. Equivalent operations can be used and what differentiates this circuit is the use of single power source. Components can be approximated to current standard values.
| Clique na imagem para ampliar |
