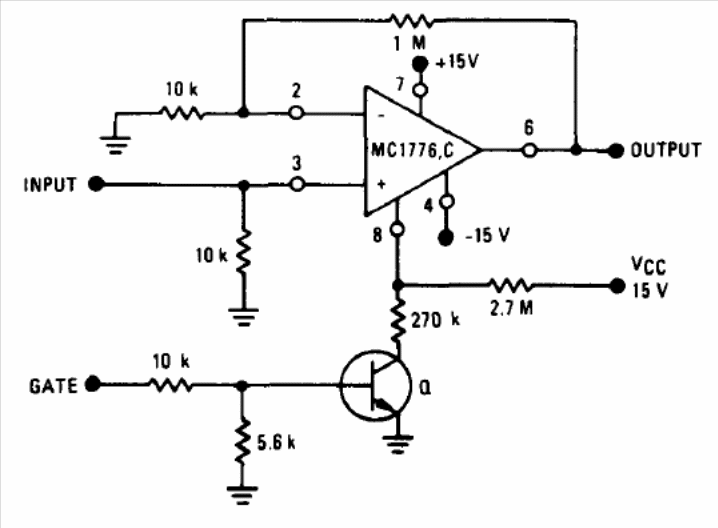

We found this circuit in the Motorola LinearDatabook of 1990. The circuit can be implemented with other equivalent operating ones that have control input. See the original operational amplifier datasheet for more information.
| Clique na imagem para ampliar |
