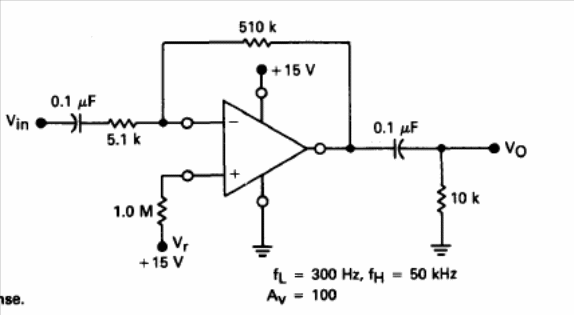

Gain 100 Amplifier with the LM3900 (CB4033E)
- Details
- Written by: Newton C. Braga
The circuit presented is from the 1990 Motorola Linear Databook. The circuit does not need a symmetrical power source and has a maximum operating frequency of 50 kHz.
