NOR gate with the LM3900 (CB4035E)
- Details
- Written by: Newton C. Braga

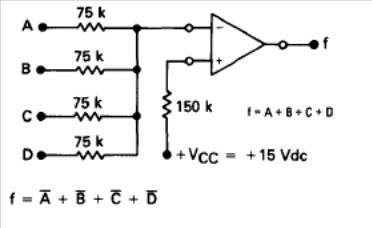

The circuit presented is from the Linear Databook of Motorola of 1990. With it we emulated a NOR gate with large number of inputs.
CB4035E
