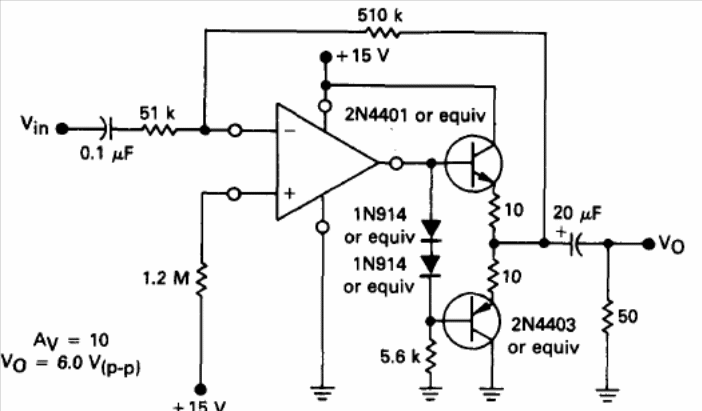

The circuit shown uses an operational transconductance amplifier such as the LM3900. Transistors allow equivalents and the power supply does not need to be symmetrical. The circuit is from the 1990 Motorola Linear Databook.
