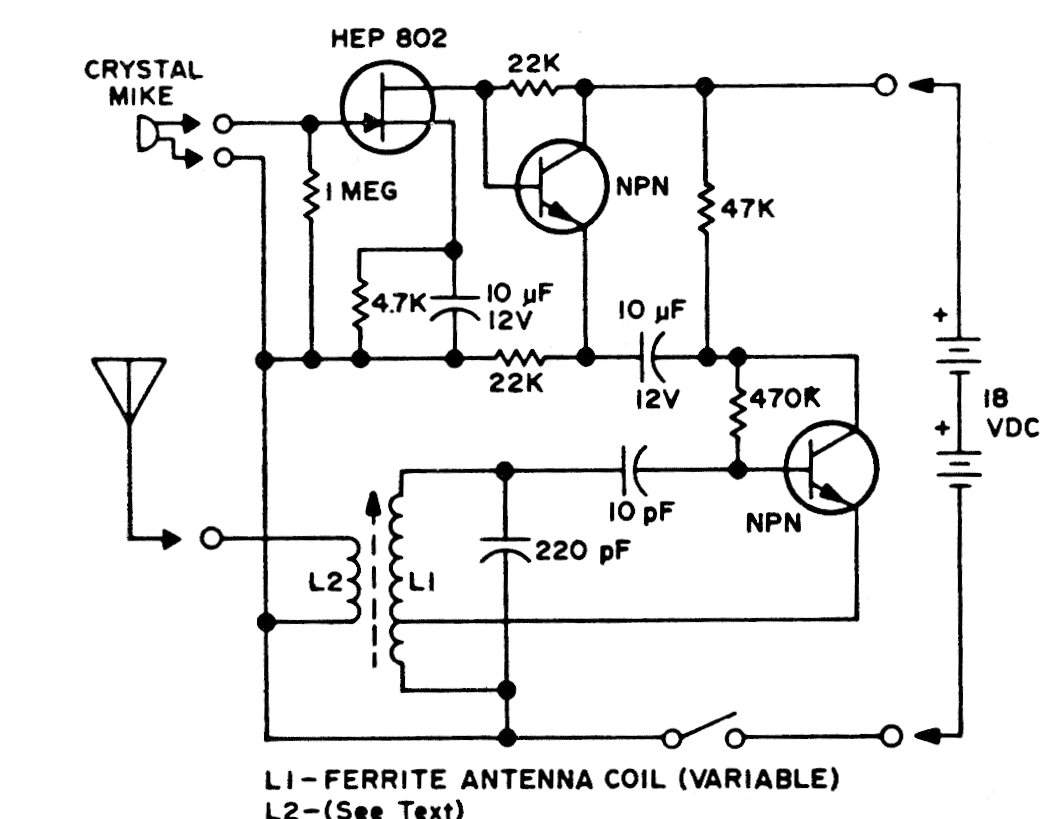

This small-range MW transmitter can be used as a wireless microphone. The circuit is from an American documentation of the 1980's. The coils are of the ferrite type for medium waves and the microphone used must be of the crystal type. L2 consists of 4 turns of wire on L1.
| Clique na imagem para ampliar |
