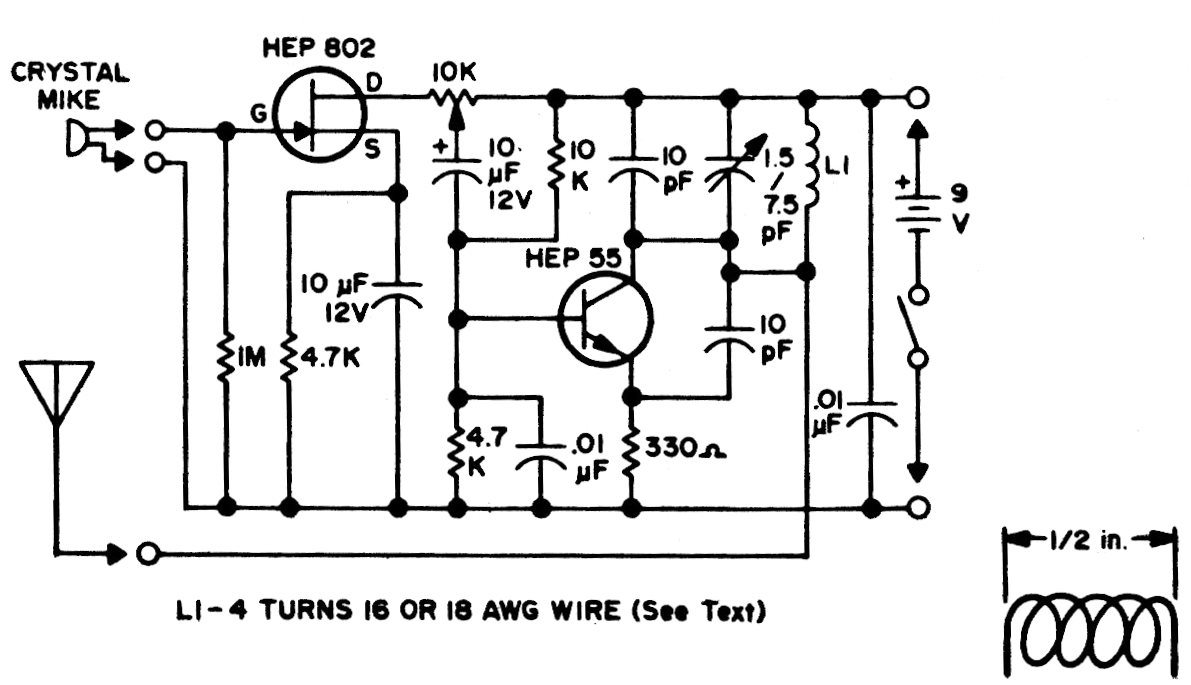

This 1980s circuit uses components of the era that can be replaced by modern equivalents. For the FET we can use the BF245 and for the oscillator a 2N2222 or BF494. Capacitors must be ceramic. The microphone must be made of crystal or ceramic.
