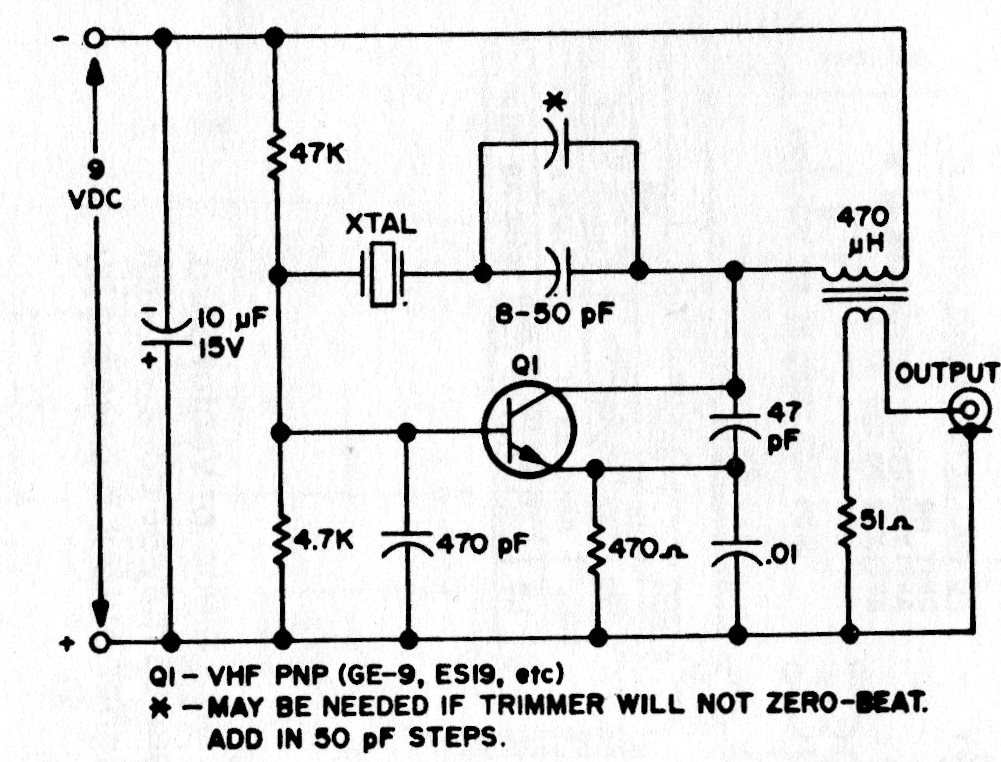

We found this precise crystal oscillator for the 144 MHz band, depending on the crystal used. The circuit is of an old documentation for amateurs, and an equivalent transistor can be used. Coil data is found next to the diagram.
| Clique na imagem para ampliar |
