Audio amplifier 741 (CB20478E)

Details
Written by: Newton C. Braga

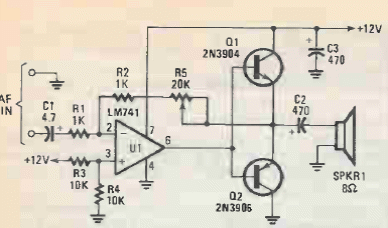

This low power audio amplifier was found at 1992s Popular Electronics. Transistors are general purpose common types.
