Greenhouse temperature alarm (CB20500E)

Details
Written by: Newton C. Braga

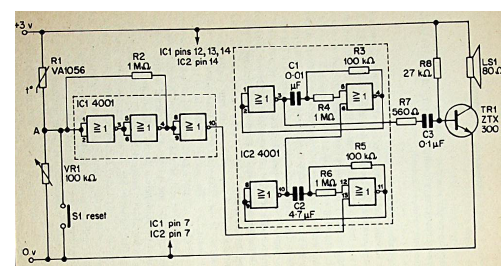

This ultra-low consumption circuit was originally designed to be powered by a solar panel or small solar batteries. The transistor is for general use.
