Photocell powered frequency standard (CB20521E)

Details
Written by: Newton C. Braga

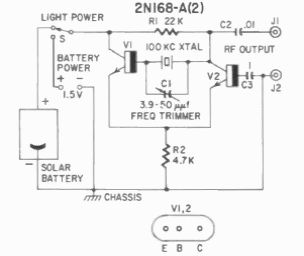

This circuit was found in documentation from the 50's. The circuit uses transistors of the time and generates 100 kHz signals determined by the crystal. Transistors are germanium.
