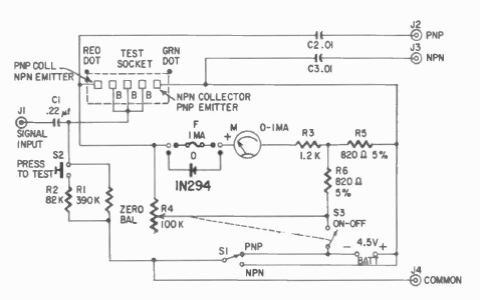

We found this circuit in documentation from the 1950s. The circuit basically applies to germanium transistors of the time but can be used to test modern transistors.
